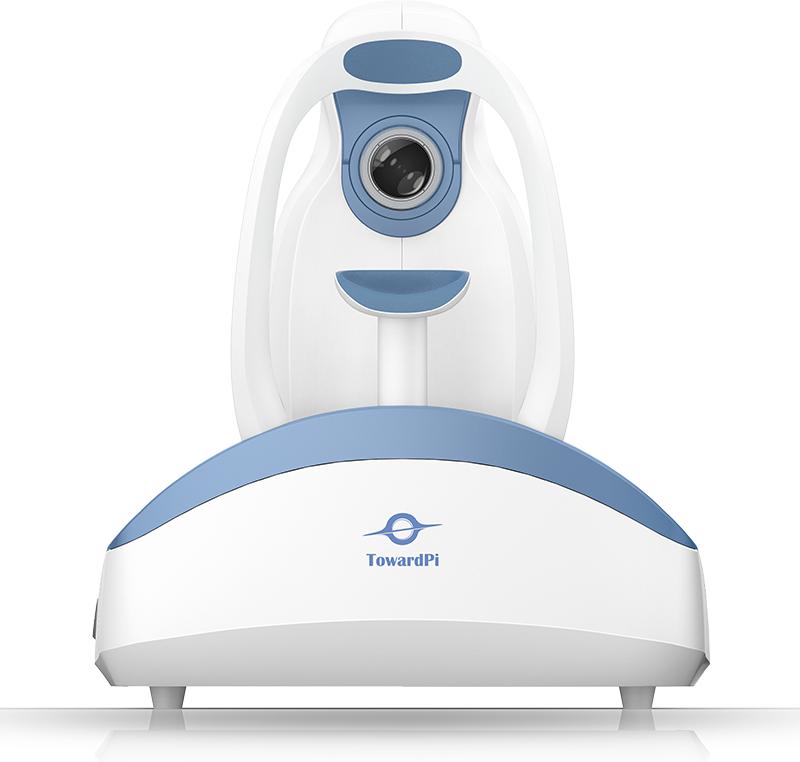

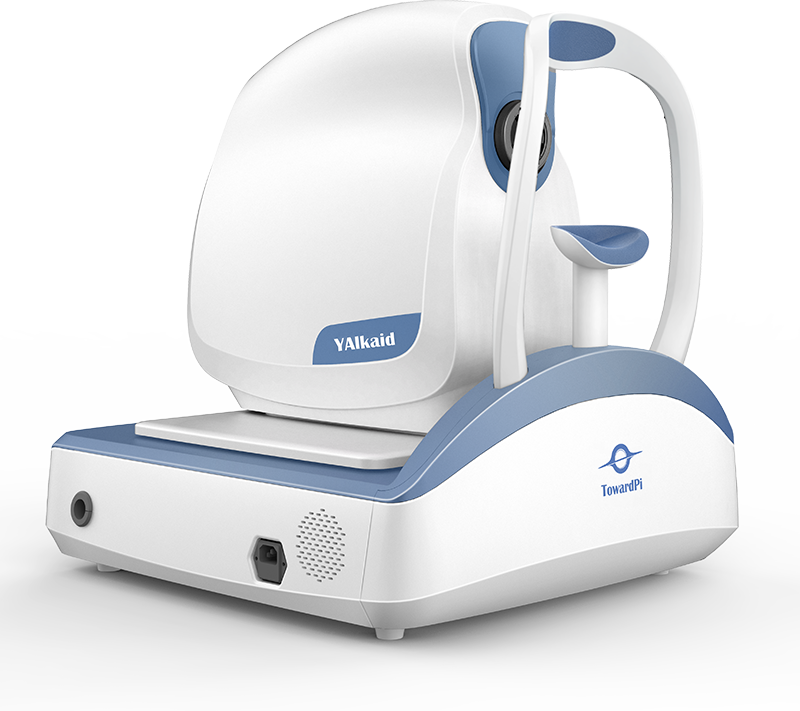

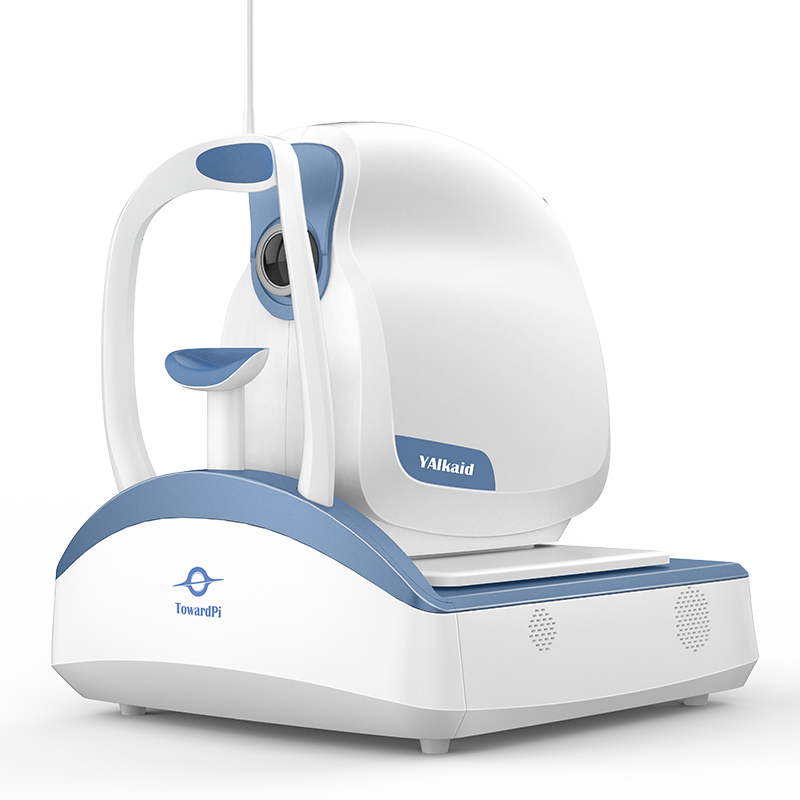

YAlkaid

100KHz Widefield Full-Range SS-OCT

TowardPi Medical has introduced 100kHzspeed Widefield Full Range SS-OCTA，with all core components developed in-house, including ultra-high-speed acquisition card and so on, presenting ultra-deep scanning depth, high resolution in limited time and fabulous OCT angiography for both anterior and posterior segments. Integrated with robust software and technology, TowardPi OCT presents more surprise by providing numerous exclusive features, including choroid OCTA algorithms and comprehensive flow quantifications, anterior segment OCTA, choroidal OCTA, iSpot function, retinal curvature, and vascular linear density analysis and so on, exhibiting new dimensions for disease management and further exploration.
FeaturesSpecifications

  • 100KHz Widefield Full-Range SS-OCTA

  • Self-Innovated homemade core components: Including high-speed acquisition card

  • Proprietary choroid OCTA algorithms: With built-in AI assisted

  • Multi functions for efficient work flow

  • Comprehensive quantifications for anterior and posterior segments

  • Support multi-platforms imaging for joint diagnosis

CE Marking under the EU MDR.

                    OCT Model:                             YG-100K Ultra           YG-100K Max

OCT optical source

Swept Source

Center wavelength

1060nm

OCT B-scan

Scan speed

100,000A-scans/sec

Max Length (posterior)

26mm                              17mm

Max Lenqth (anterior)

24mm

Scan depth (posterior)

14mm                              12mm

Scan depth (anterior)

15mm

Refractive adjustment range

-35D to +45D                  -20D to +15D

Axdial optical resolution

≤6μm

Axial best digital resolution

1.9μm

Transverse optical resolution

1.0μm

Fundus Imaging

Methodology

SLO                                LSO

LSO wavelength

850nm

LSO FOV

90°                                  60°

Minimum pupil diamete

2.0mm

Eye tracking speed

128Hz                              60Hz

OCT Angiography

Max.Single scan size(anterior)

24mmx24mm

Max.Single scan size(posterior)

18mmx18mm                    16mmx16mm

Maximum resolution(single scan)

1024x1024

Software Functions

Anteriorsegment (AS) quantification

undefined

As panoramic parameters

undefined

Thickness/volumn measurement(retina)

undefined

Thickness/volumn measurement(choroid)

undefined

Glaucoma analysis(GMA,ONH,etc.)

undefined

Blood flow quantification(retina)

undefined

Blood flow quantification(choroid)

undefined

Blood flow quantification(optic disk)

undefined

Blood flow quantification(AS)

undefined

Posterior curvature

undefined

3D structure

undefined

3D vessel

undefined


Clinical Images
  • Choroid OCTA with Quantification Parameters
    Choroid OCTA with Quantification Parameters
  • Normal eye-15X15mm OCTA
    Normal eye-15X15mm OCTA
  • Normal Vireous
    Normal Vireous

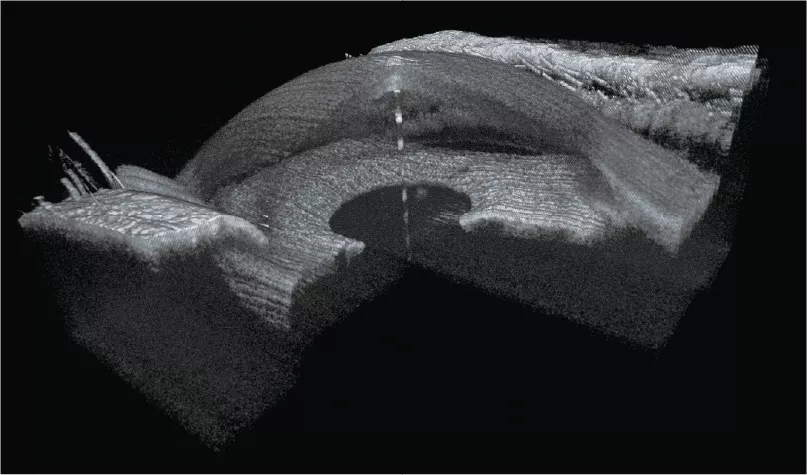

  • 3D Reconstruction of AS
    3D Reconstruction of AS

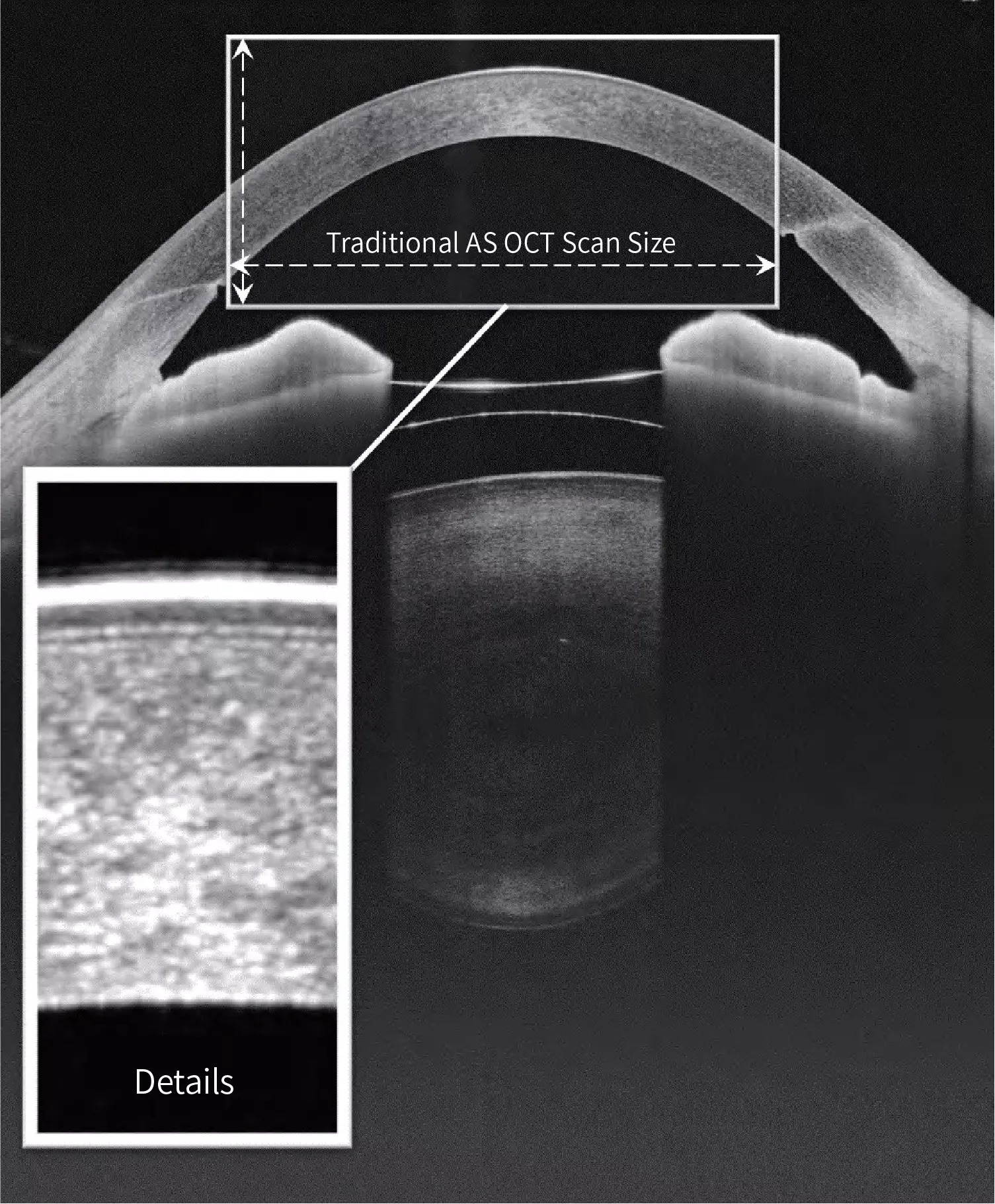

  • High Resolution Panoramic Anterior Segment
    High Resolution Panoramic Anterior Segment

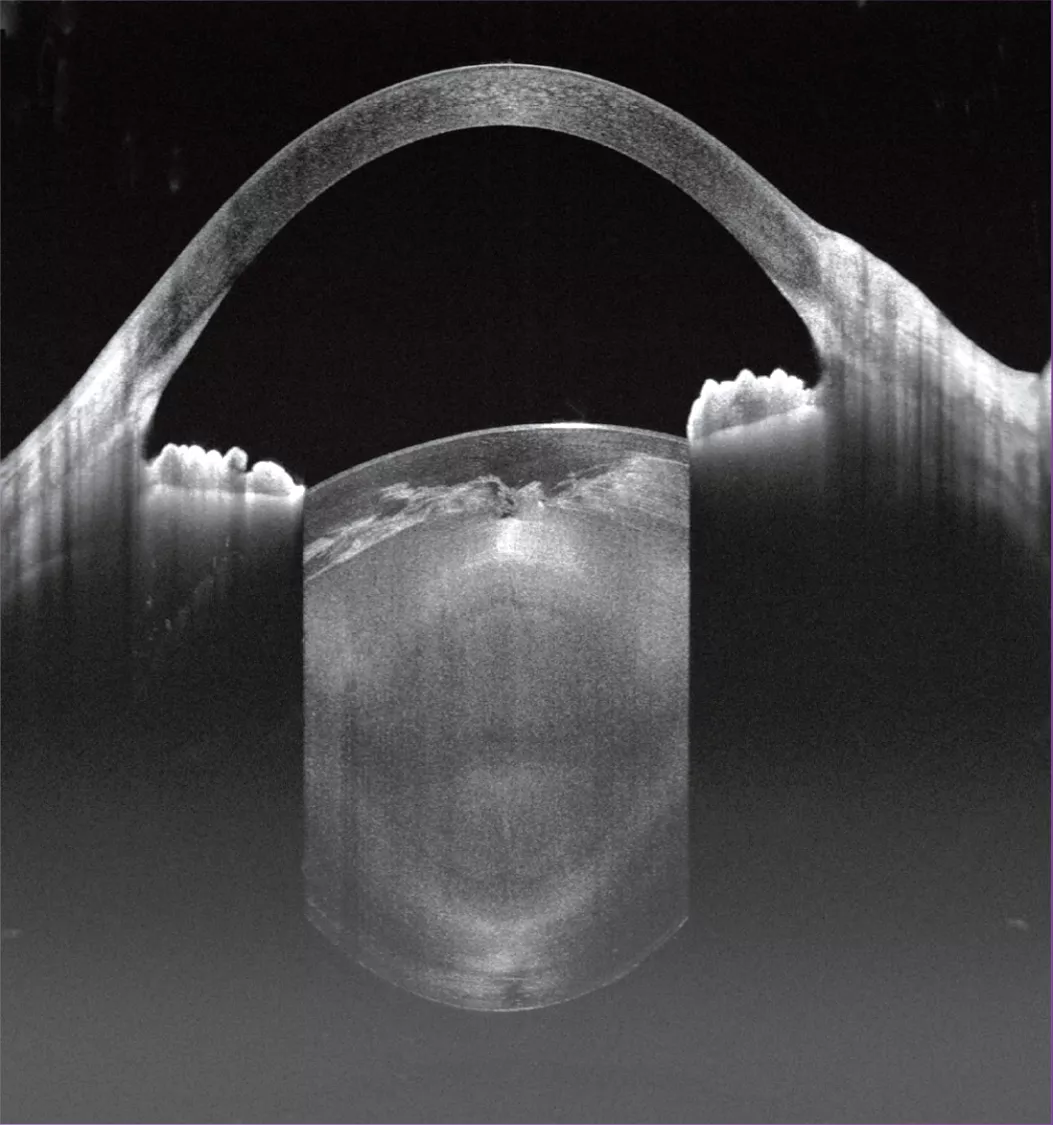

  • Panaromic Anterior Segment- Cataract
    Panaromic Anterior Segment- Cataract

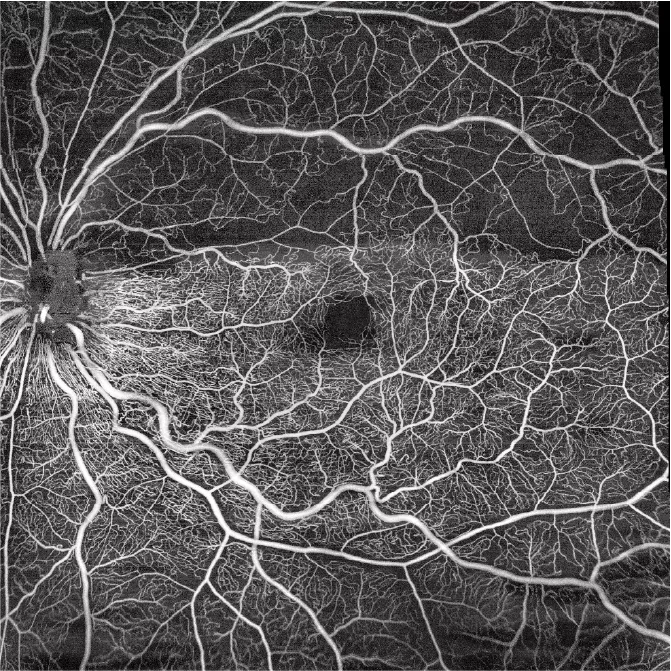

  • 12×12mm OCTA（Hemi-Retinal Vein Occlusion (HRVO))
    12×12mm OCTA（Hemi-Retinal Vein Occlusion (HRVO))

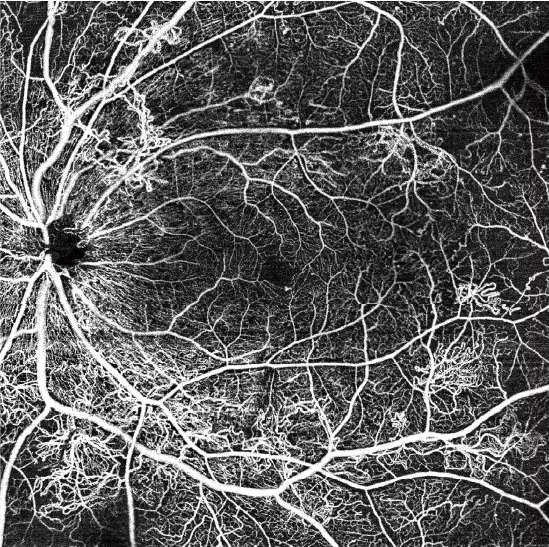

  • 12x12mm OCTA
    12x12mm OCTA

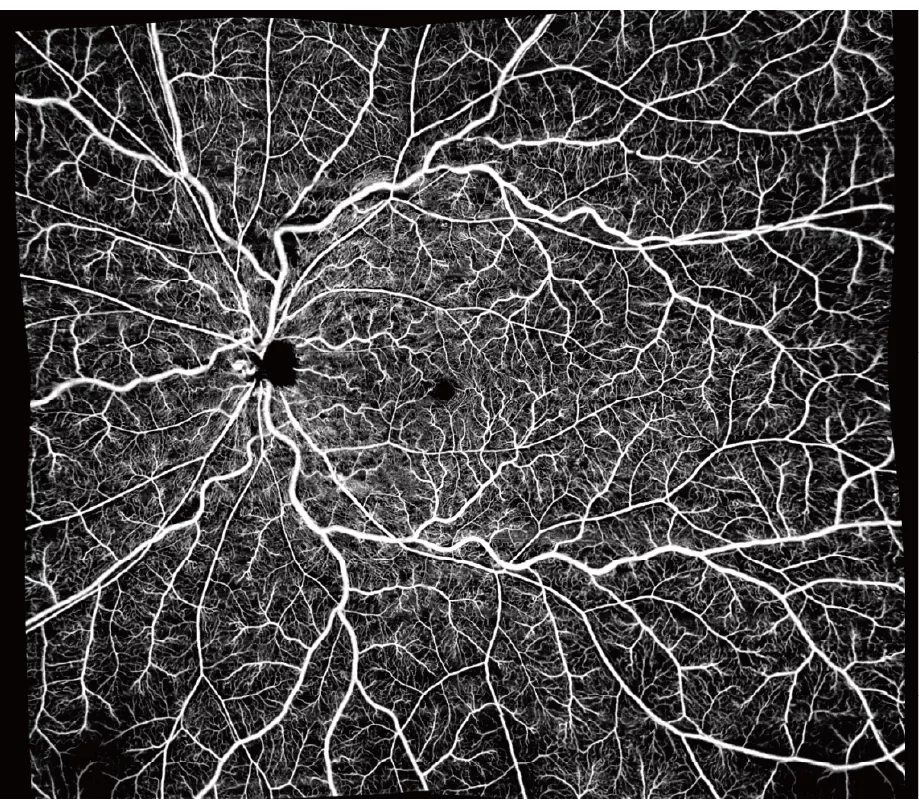

  • Ultra-wide-field (Flexible Montage)
    Ultra-wide-field (Flexible Montage)
  • Diabetic Retinopathy：Vitreal traction at optic disc complicated with epiretinal membrane and retinal edema
    Diabetic Retinopathy：Vitreal traction at optic disc complicated with epiretinal membrane and retinal edema
  • High Myopia（16mm wide，6mm deep）
    High Myopia（16mm wide，6mm deep）

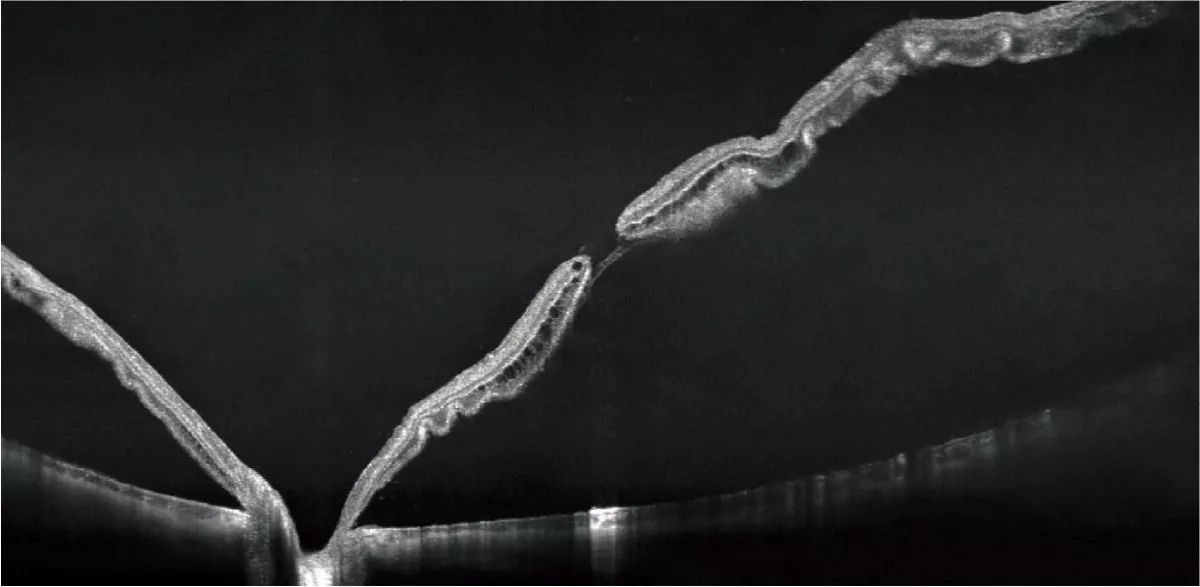

  • Wide Field & Deep Scan Depth I Retinal Detachment
    Wide Field & Deep Scan Depth I Retinal Detachment

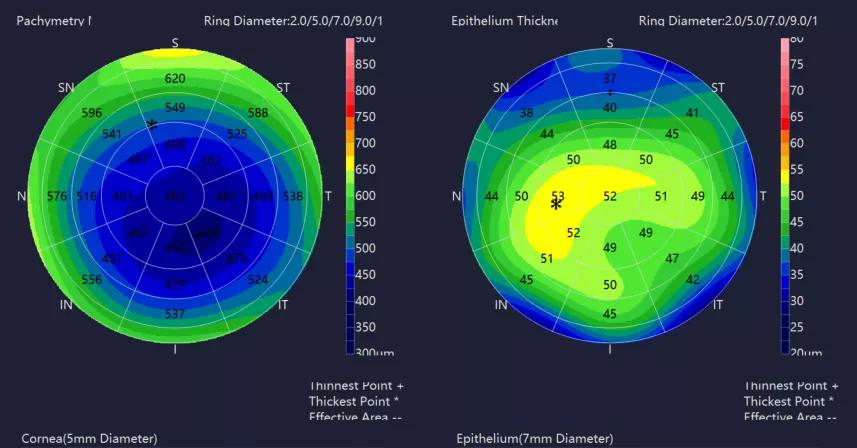

  • Cornea Thickness Map and Epithelium Thickness Map
    Cornea Thickness Map and Epithelium Thickness Map
  • OCT and OCTA quantifications
    OCT and OCTA quantifications

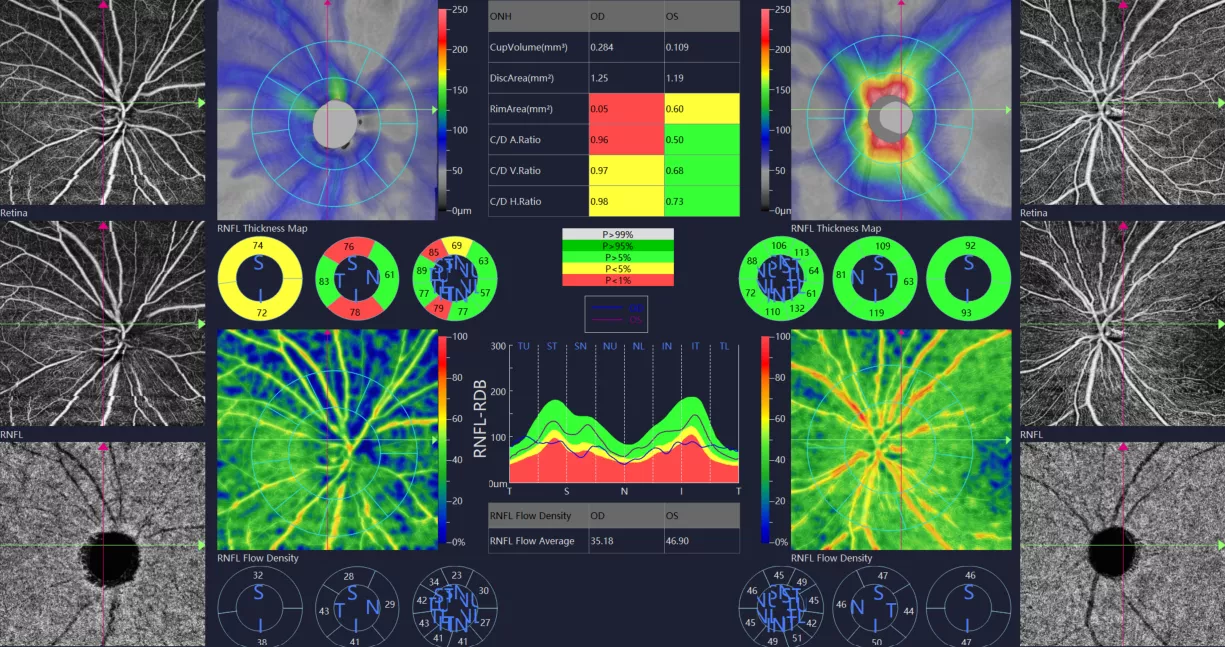

  • ONH analysis (structure & flow)
    ONH analysis (structure & flow)
  • AS OCTA and Quantification Cornea I Neovascularization
    AS OCTA and Quantification Cornea I Neovascularization

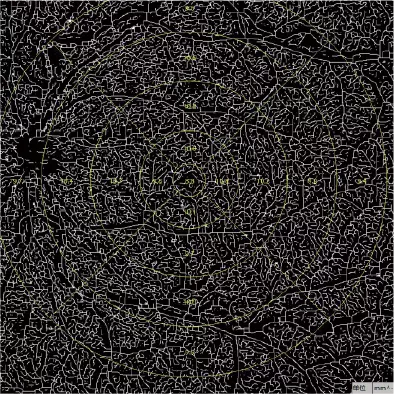

  • Retinal Length Density
    Retinal Length Density
