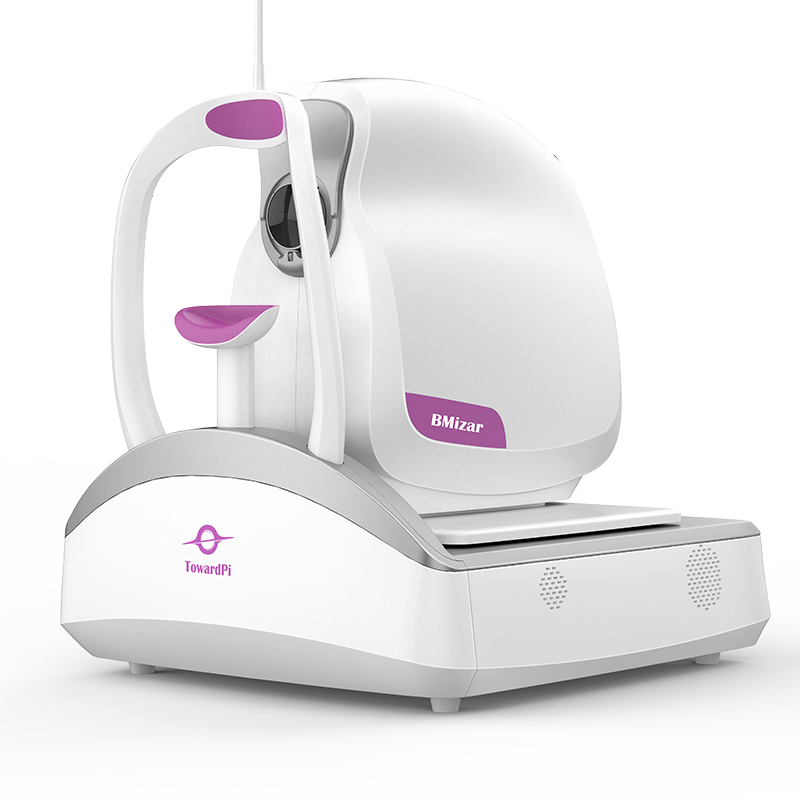

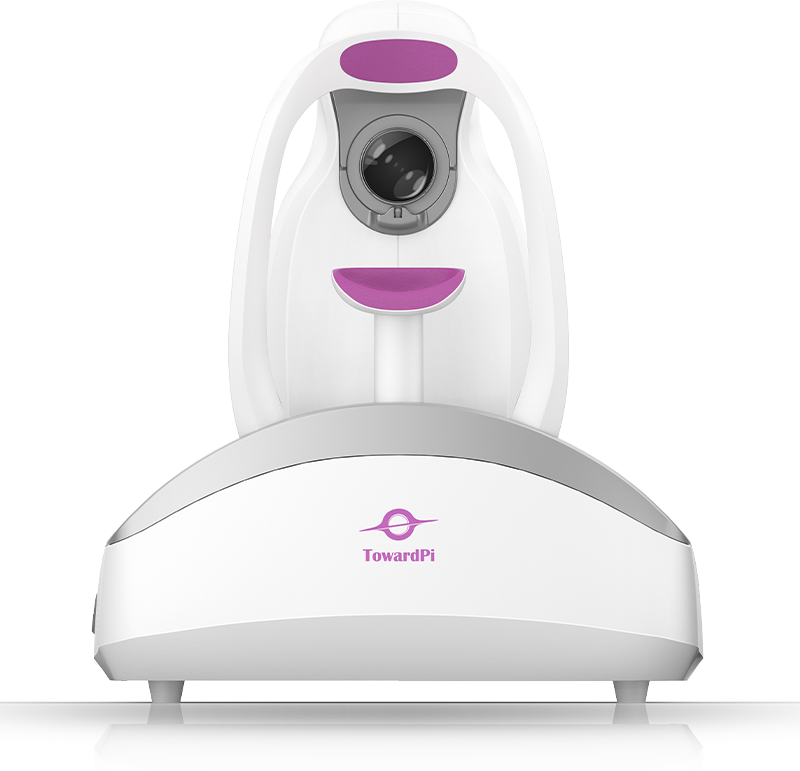

BMizar
TowardPi Medical has introduced the world's first 400 kHz speed Ultra-Widefield Full-Range SS-OCTA, with all core components developed in-house, including an ultra-high-speed acquisition card and an integrated bi-aspherical wide-angle lens. This system makes it possible to achieve 120° ultra-widefield full-range SS-OCTA within 7–15 seconds.

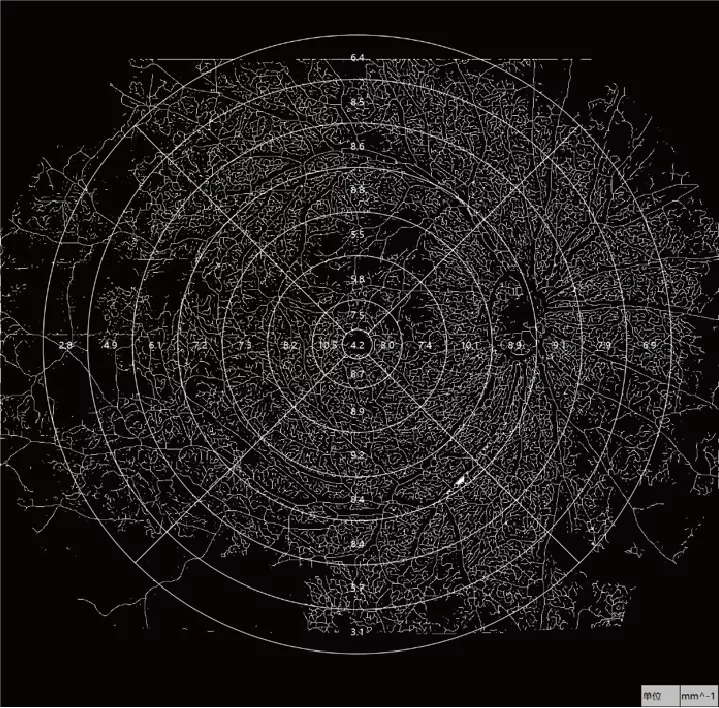

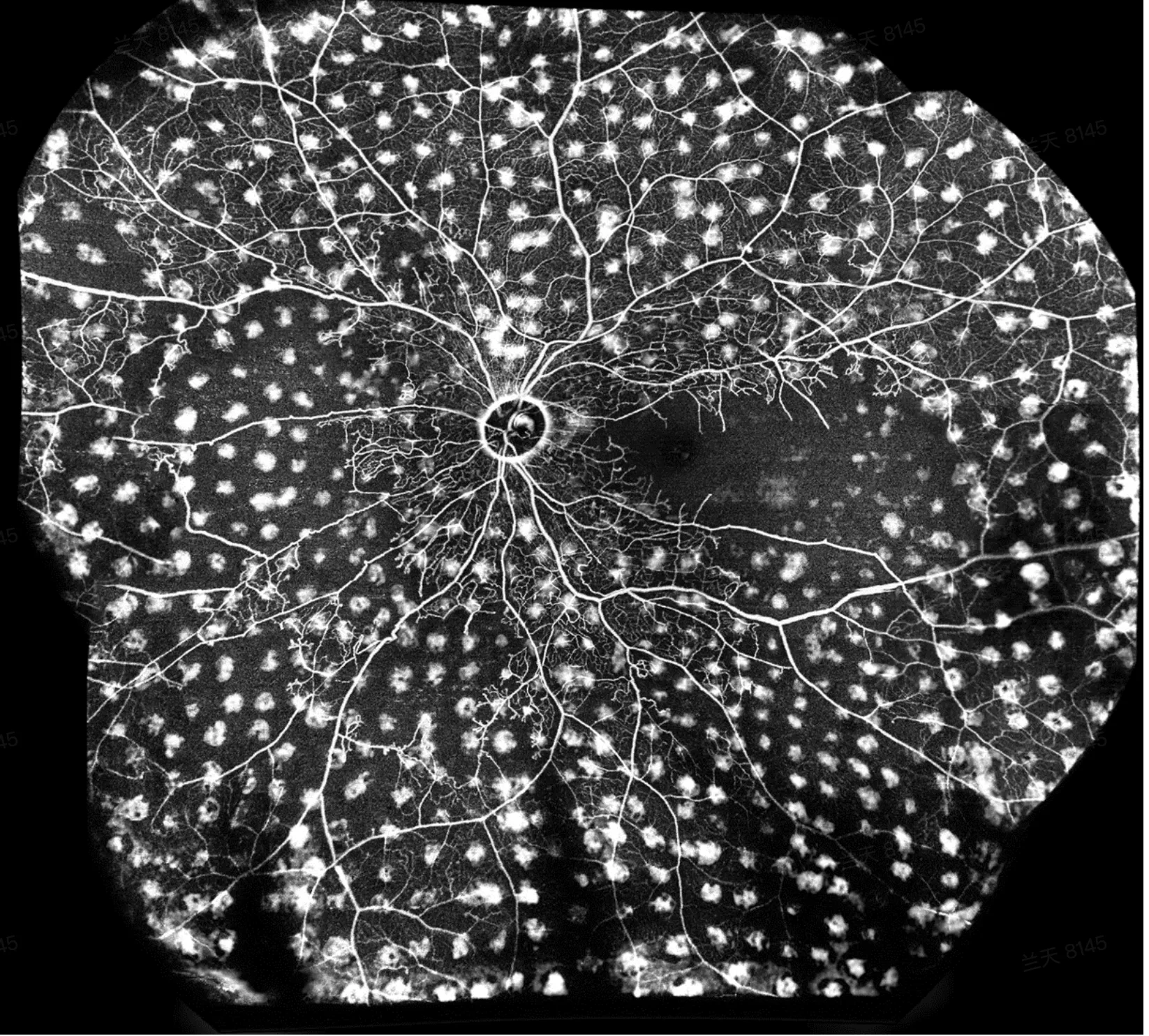

Powered by built-in AI technology, the TowardPi OCT system integrates precise segmentation algorithms and choroidal OCTA algorithms, providing not only high-quality images but also comprehensive flow quantifications and structural measurements across all sizes. Additionally, TowardPi OCT offers numerous exclusive features, including anterior segment OCTA, choroidal OCTA, iSpot function, retinal curvature analysis, and vascular linear density analysis and so on introducing new dimensions for disease management and further exploration.
400KHz SS-OCTA: World's first 400kHz speed ultra-widefield full-range SS-OCTA
Self-Innovated homemade core components: Including high-speed acquisition card and integrated bi-aspherical wide-angle lens
10 billion acquisition points: Ultra-high resolution for all sizes
Proprietary choroid OCTA algorithms: With built-in AI assisted
7-15 seconds: high-speed UWF OCTA acquisition
Numerous Quantification analysis in all-slabs and all-sizes
No additional lens for animal study
Support multi-platforms imaging for joint diagnosis
CE Marking under the EU MDR.
OCT Model: BM-400K |
OCT optical source | Swept Source |
Central wavelength | 1060nm |
OCT B-scan |
Scan speed | 400,000 A-scans/sec |
Max.Length(posterior) | 24mm |
Max.Length(anterior) | 24mm |
Scan depth(posterior) | 6mm |
Scan depth(anterior) | 6mm |
Refractive adjustment range | -35D to +45D |
Axial optical resolution | ≤6μm |
Axial best digital resolution | 1.9μm |
Transverse optical resolution | 10μm |
Fundus Imaging |
Methodology | Scanning Laser Ophthalmoscopy(SLO) |
SLO wavelength | 850mm |
SLO FOV | 60°x60° |
Minimum pupil diameter | 2.0mm |
Eye tracking speed | 128Hz |
OCT Angiography |
Max.Single scan size(anterior) | 24mmx24mm |
Max.Single scan size(posterior) | 24mmx20mm |
Maximum resolution(single scan) | 1536x1280 |
Max.scan size(montage) | 42mmx40mm |
Software functions |

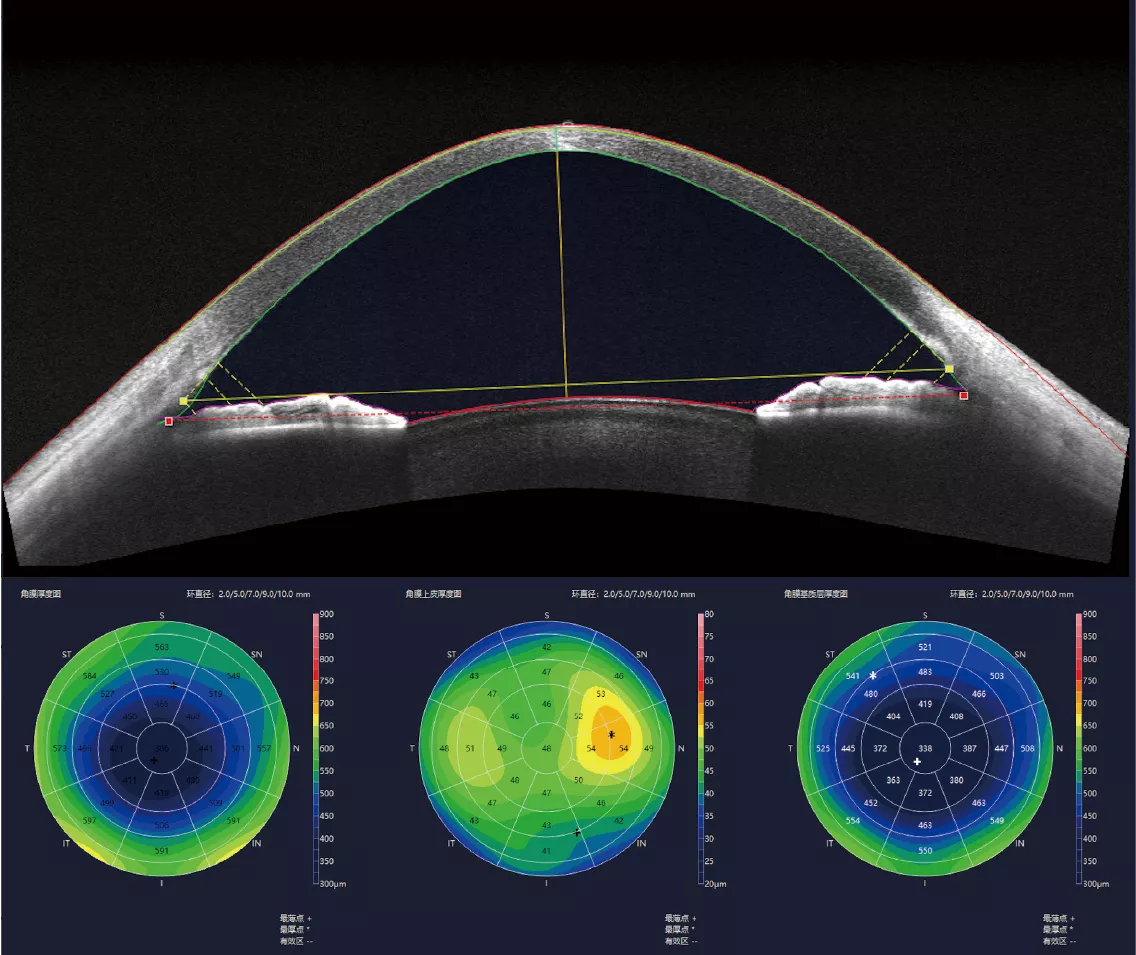

Anterior segment (AS) quantification |
|
AS panoramic parameters |
|
Thickness/volumn measurement(retina) |
|
Thickness/volumn measurement(choroid) |
|

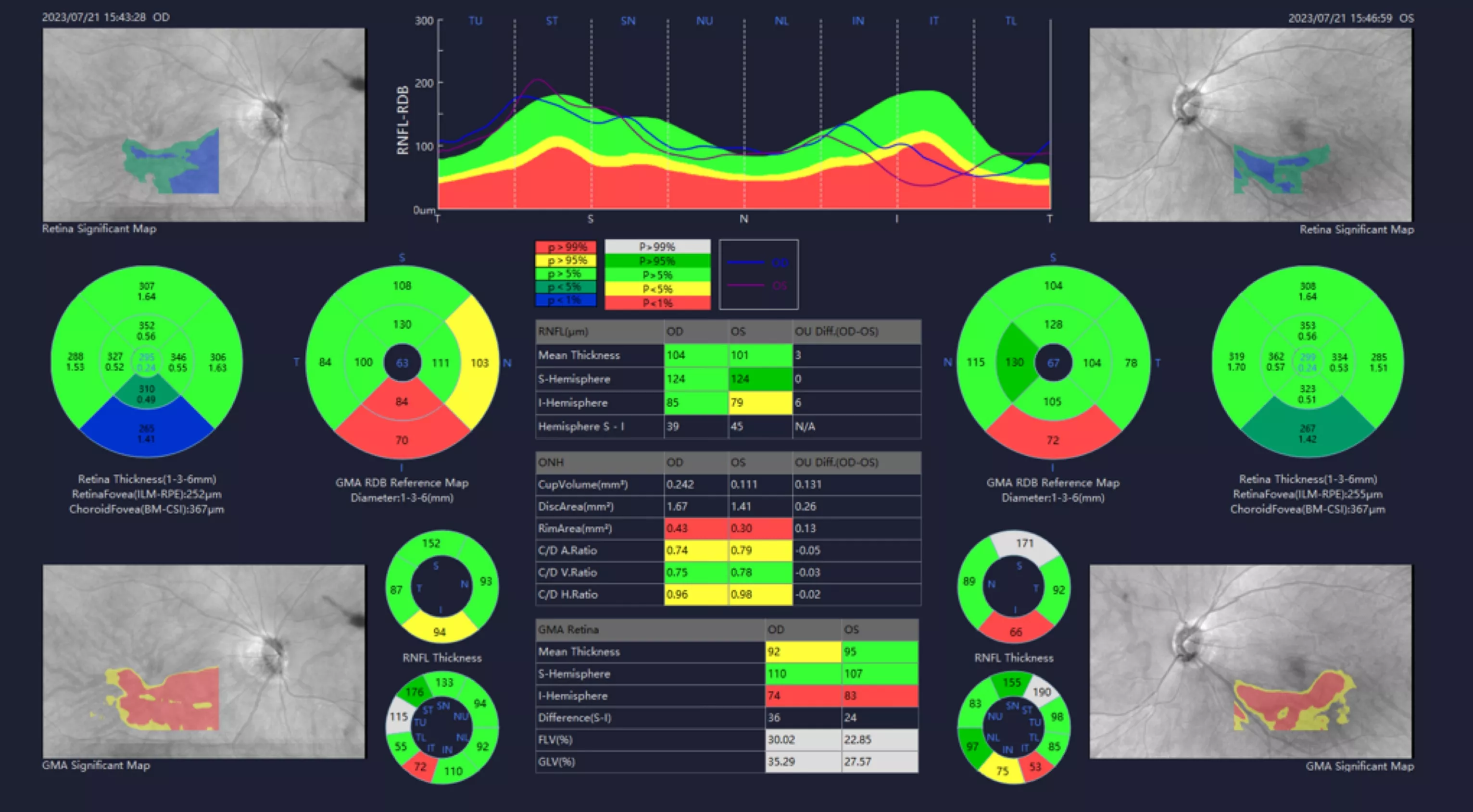

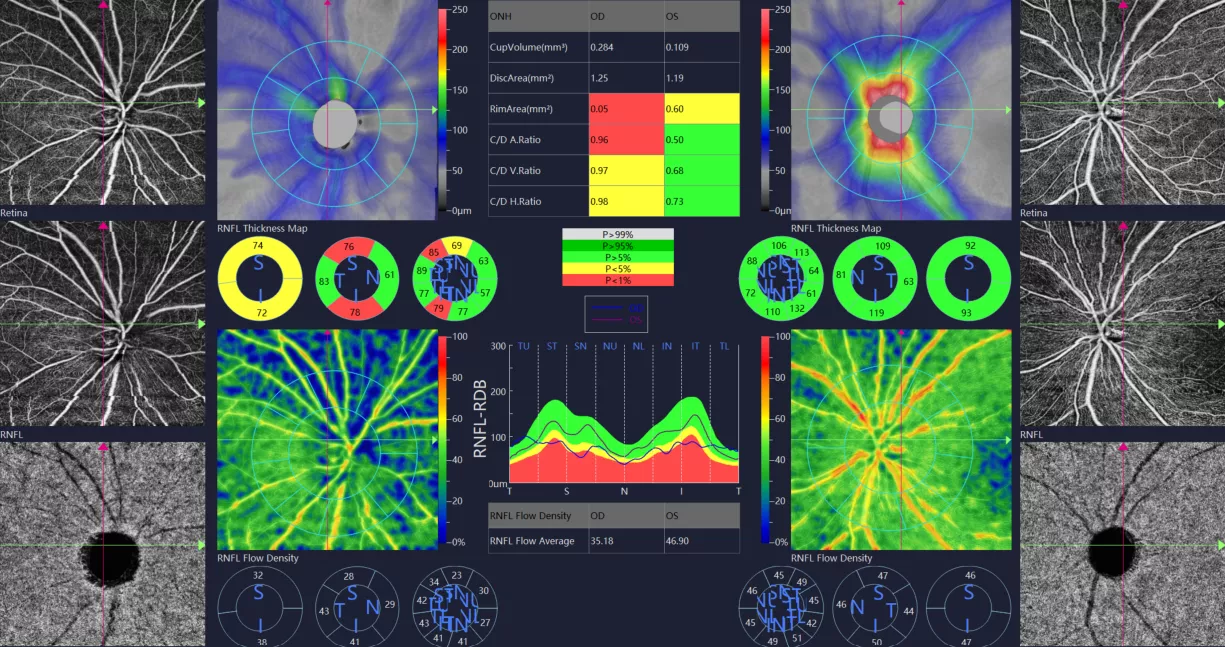

Glaucoma analysis (GMA, ONH, etc.) |
|

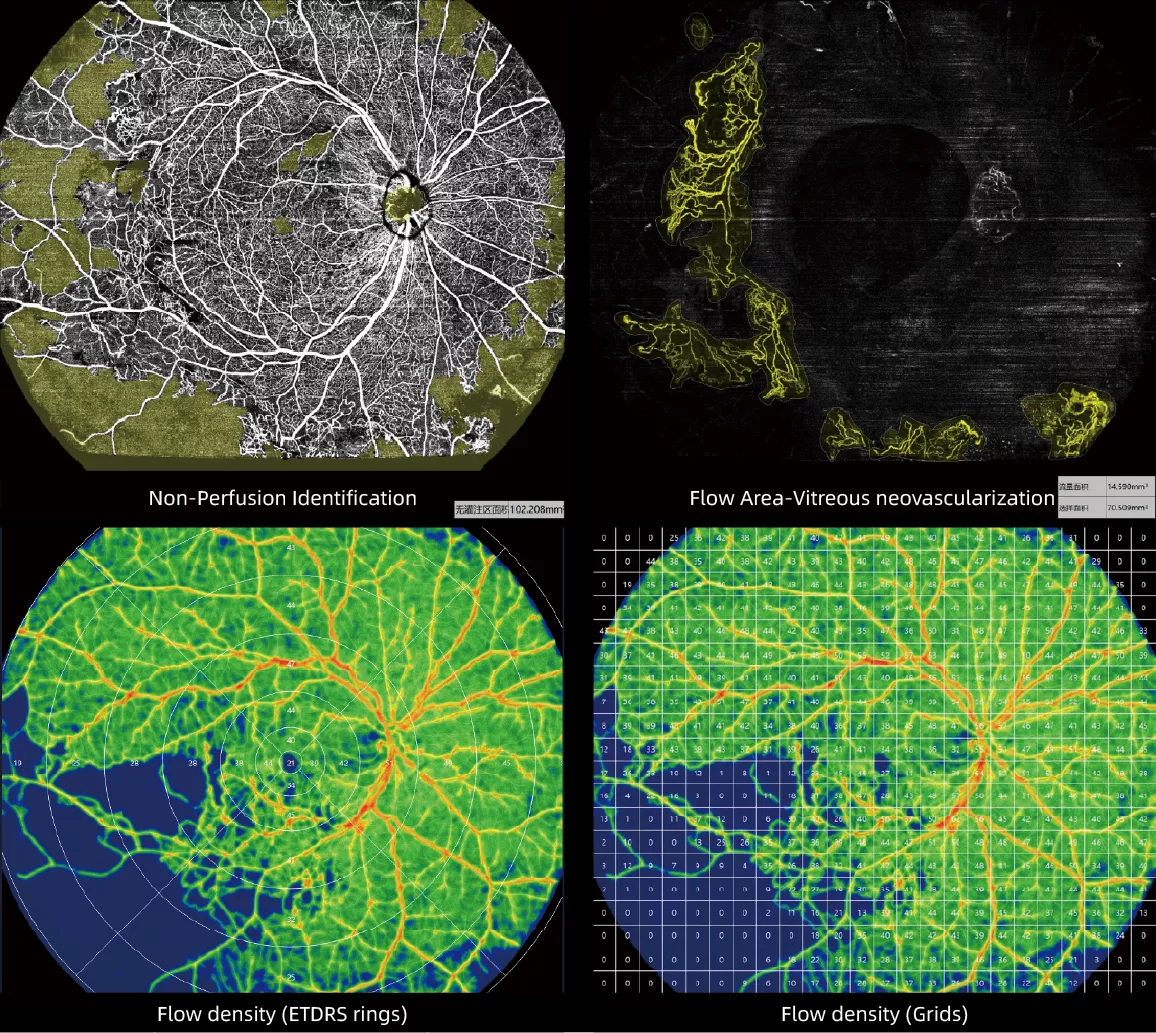

Blood flow quantification (retina) |
|
Blood flow quantification (choroid) |
|
Blood flow quantification (optic disk) |
|
Blood flow quantification (AS) |
|
Posterior curvature |
|
3D structure |
|

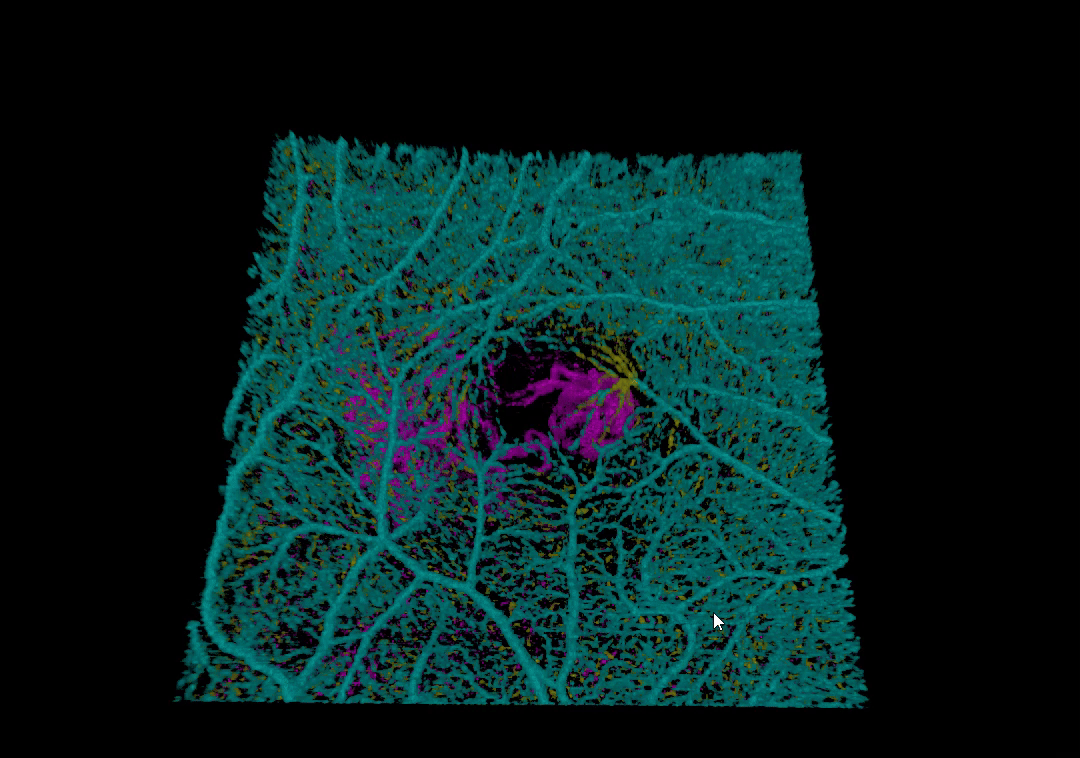

3D vessel |
|
