YAlkaid
T100KHz speed full-range swept-source OCT for anterior and posterior. An ideal choice for comprehensive OCT application with only one device.
Features：
Yalkaid (YG-100K) features a new generation SS-OCT with a remarkable speed of 100kHz. Its key advantage lies in the full-range SS technology, enabling a scan depth of 12 mm for the vitreous, retina, choroid, and an extraordinary 15 mm for the anterior. The device's <6 micron optical resolution ensures detailed observation of both anterior and posterior structures.
With a wavelength of 1060 nm, Yalkaid is particularly beneficial for scanning patients with cataracts and vitreous opacities. Its invisible character minimizes fixation distractions. Moreover, its extensive 17 mm line scans and 15 mm 3D/OCTA scans cover a larger area compared
Yalkaid is equipped with a wide range of quantification and analysis tools that greatly assist in clinical practice and research. These features enhance diagnostic precision and contribute
| OCT optical source | Swept Source | |
|---|---|---|
| Center wavelength | 1060nm | |
| OCT B - scan | ||
| Scan speed | 100,000 A - scans/sec | |
| Max. Length (posterior) | 17mm | |
| Max. Length (anterior) | 24mm | |
| Scan depth (posterior) | 12mm | |
| Scan depth (anterior) | 15mm | |
| Refractive adjustment range | - 20D to +15D | |
| Axial optical resolution | ≤6μm | |
| Transverse optical resolution | 10μm | |
| Fundus Imaging | ||
| Methodology | Line - scanning ophthalmoscope (LSO) | |
| LSO wavelength | 850nm | |
| LSO FOV | 40°×40° | |
| Minimum pupil diameter | 2.0mm | |
| Eye tracking speed | 60Hz | |
| OCT Angiography | ||
| Max. Single scan size (anterior) | 18mm×18mm | |
| Max. Single scan size (posterior) | 15mm×15mm | |
| Maximum resolution (single scan) | 1024×1024 | |
| Software Functions | ||
| Anterior segment (AS) quantification | ☑ | |
| AS panoramic parameters | ☑ | |
| Thickness/volume measurement (retina) | ☑ | |
| Thickness/volume measurement (choroid) | ☑ | |
| Glaucoma analysis (GMA, ONH, etc.) | ☑ | |
| Blood flow quantification (retina) | ☑ | |
| Blood flow quantification (choroid) | ☑ | |
| Blood flow quantification (optic disk) | ☑ | |
| Blood flow quantification (AS) | ☑ | |
| Posterior curvature | ☑ | |
| 3D Structure | ☑ | |
| 3D vessel | ☑ | |

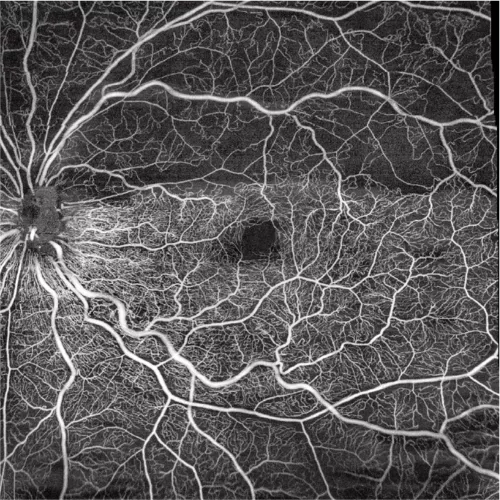

- 12×12 mm OCTA

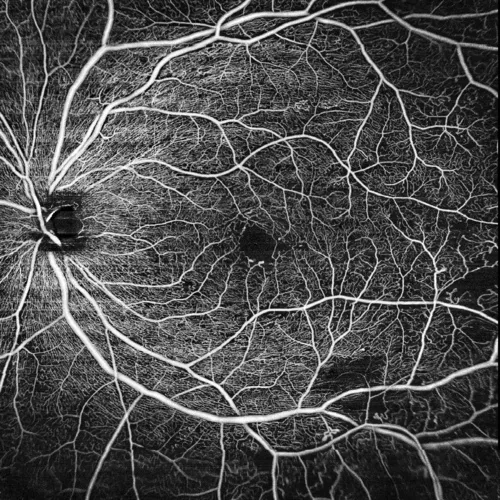

- Diabetic retinopathy (12×12mm OCTA)

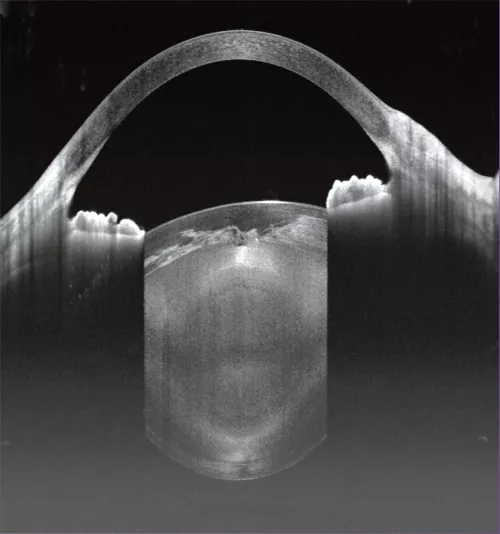

- Panoramic anterior segment - cataract
- Panoramic front section -ICL
- High myopia (16mm lateral, 6mm deep)
- Extensive retinal detachment
- Intraocular lens and anterior vitreous body
- Intraocular lens
- ICL

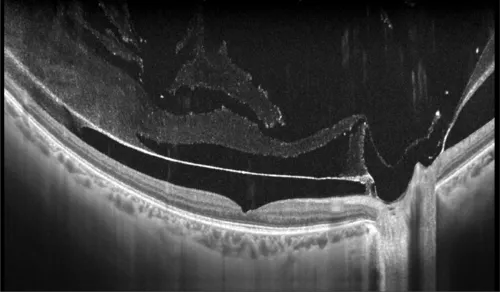

- Posterior vitreous detachment
- Retinal detachment with yellow pan hole
- Posterior vitreous detachment

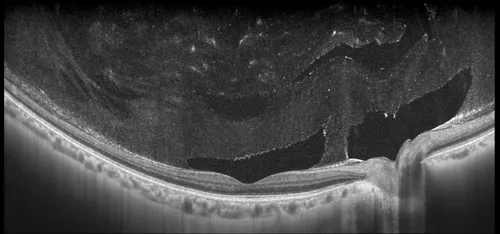

- Anterior pouch of posterior vitreous cortex
