BMizar

BMizar 400KHz Full-Range SS-OCT
400kHz speed full-range swept-source OCT for anterior and posterior. The ultimate performance of OCT and OCTA to meet the dreams of ophthalmological specialists and surgeons.
产品详情技术参数

Features:

In addition to the advantage of Yalkaid,

BMizar (BM-400K) showcases the industry's most powerful OCT "engine" with a 400kHz swept-source. Its exceptional optic design elevates the experience of OCT Angiographytoan unprecedented level. With high-definition imaging of the retina, choroid, and anterior, it effortlessly covers an incredibly large area in a single scan (achieving a 24 mm width OCTA in just 7-15 seconds).

This revolutionary technology is a game changer for clinical practices, particularly in the diagnosis and treatment of diseases such as DR, RVO, RAO, and more. Furthermore, the BMizar offers a vast dioptric adaptive range, making it feasibletoperform all types of OCT/OCTA scans on small animals like rabbits, cavies, and even mice without the need for additional lenses.

It is truly a dream machine for any OCT user.


OCT Model: BM-400K
OCT optical sourceSwept Source
Center wavelength1060nm
OCT B - scan
Scan speed400,000 A - scans/sec
Max. Length (posterior)24mm
Max. Length (anterior)24mm
Scan depth (posterior)6mm
Scan depth (anterior)6mm
Refractive adjustment range-35D to +45D
Axial optical resolution≤6μm
Transverse optical resolution10μm
Fundus Imaging
MethodologyScanning Laser Ophthalmoscopy (SLO)
SLO wavelength850nm
SLO FOV60°×60°
Minimum pupil diameter2.0mm
Eye tracking speed128Hz
OCT Angiography
Max. Single scan size (anterior)18mm×18mm
Max. Single scan size (posterior)24mm×20mm
Maximum resolution (single scan)1536×1280
Max. size (montage)42mm×40mm
Software Functions
Anterior segment (AS) quantification
AS panoramic parameters
Thickness/volume measurement (retina)
Thickness/volume measurement (choroid)
Glaucoma analysis (GMA, ONH, etc.)
Blood flow quantification (retina)
Blood flow quantification (choroid)
Blood flow quantification (optic disk)
Blood flow quantification (AS)
Posterior curvature
3D structure
3D vessel
Clinical atlas
  • Global wide Angle retinal vessels
    Global wide Angle retinal vessels
  • Global wide-angle choroidal vessels
    Global wide-angle choroidal vessels
  • Posterior vitreous detachment anterior macular membrane retinal cystoid edema local shallow detachment
    Posterior vitreous detachment anterior macular membrane retinal cystoid edema local shallow detachment
  • Retinoschisis
    Retinoschisis
  • Able-bodied person
    Able-bodied person

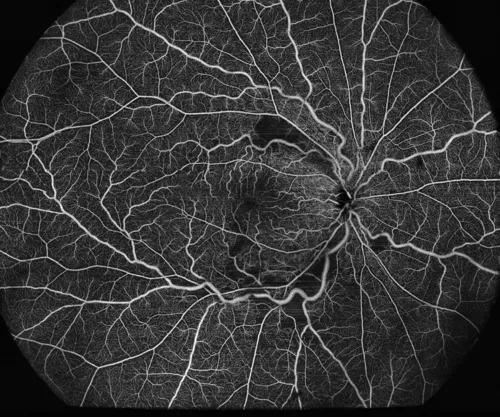

  • Retinal vasculitis, image credit: Dr. Sun Yaoyao
    Retinal vasculitis, image credit: Dr. Sun Yaoyao
  • Retinal branch vein embolism, image Credit: Professor Zhao Mingwei
    Retinal branch vein embolism, image Credit: Professor Zhao Mingwei
  • Diabetic retinopathy, photo Credit: Professor Qi Huijun
    Diabetic retinopathy, photo Credit: Professor Qi Huijun
  • Blood flow density and FAZ automatic parameters in diabetic retinopathy
    Blood flow density and FAZ automatic parameters in diabetic retinopathy

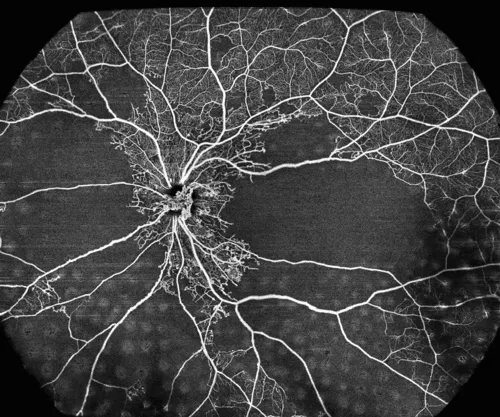

  • Proliferative diabetic retinopathy, image Credit: Professor Chen Youxin
    Proliferative diabetic retinopathy, image Credit: Professor Chen Youxin
